TR-Reciprocating Circulation Sludge Drying Machine
A closed-loop sludge drying system for further moisture reduction of dewatered sludge cake and sludge reduction.
A closed-loop sludge drying system for further moisture reduction of dewatered sludge cake and sludge reduction.
Product Overview
The SFC-TR Series Reciprocating Circulation Sludge Drying Machine is a closed-loop drying system designed for further moisture reduction of dewatered sludge cake.

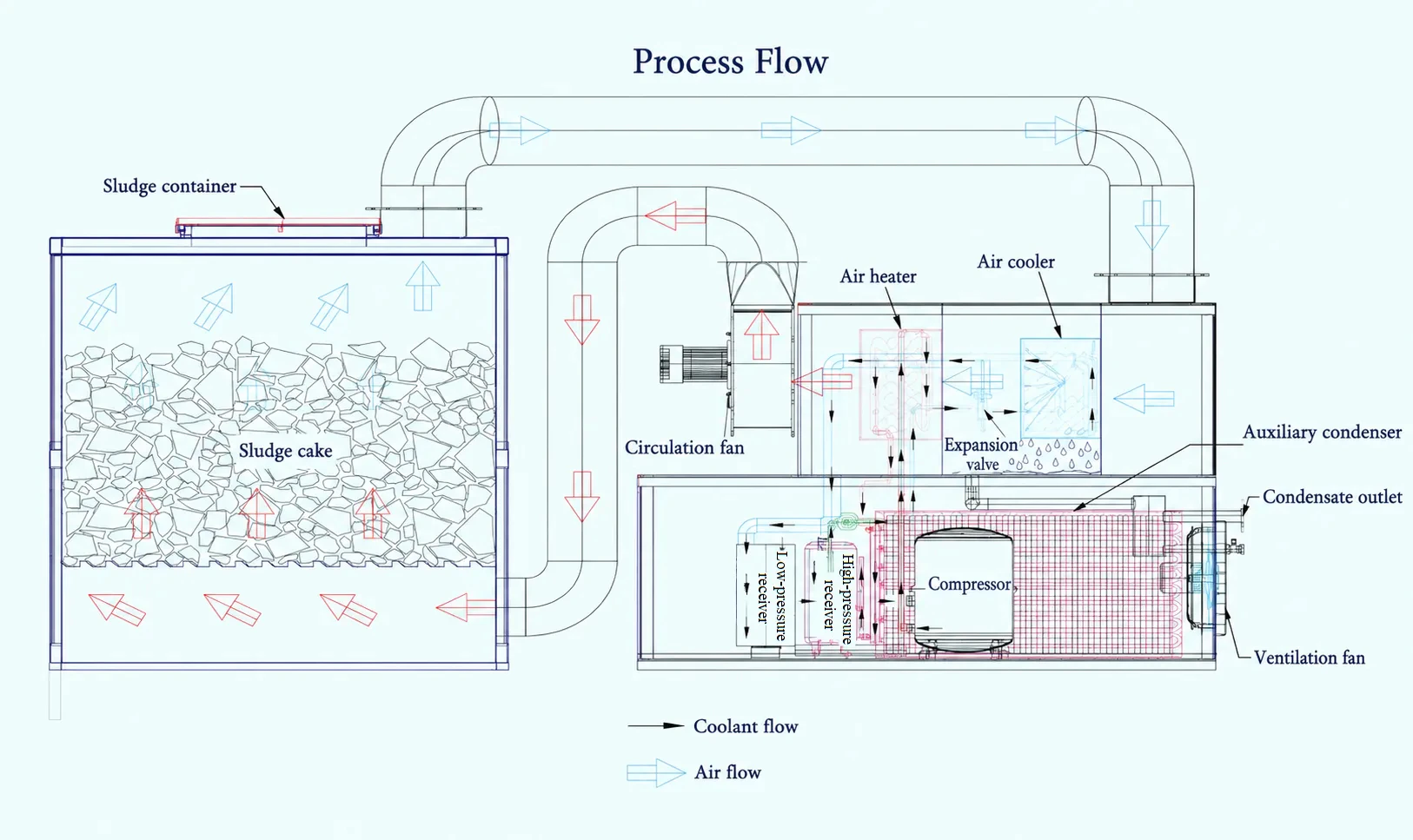

The system integrates hot air circulation, heat exchange, condensation dehumidification and reciprocating sludge conveying. Circulating hot air evaporates moisture from the sludge. The moisture-containing air then passes through the heat exchange and condensation system, where water is condensed and removed. The dried air is reheated and reused in the closed loop.
This drying process helps reduce sludge weight after drying, with no emissions, no secondary pollution, low noise and energy-saving operation. The system adopts integrated and modular design, making installation, operation and maintenance easier.
The basic process flow is:
Feeding Dewatered Sludge → Hot Air Drying → Moisture Evaporation → Condensation Removal → Dry Sludge Discharge
The SFC-TR sludge dryer can be used after screw press sludge dewatering machines, belt press sludge dewatering machines or other dewatering systems.
This product is a professional sewage treatment solution developed for [target sewage types such as municipal domestic sewage/industrial organic wastewater/breeding wastewater/medical wastewater]. Integrating [core technologies such as biological treatment/membrane separation/advanced oxidation/intelligent control], it can efficiently remove pollutants including COD, BOD, ammonia nitrogen, total phosphorus, suspended solids, and toxic and harmful substances from sewage. With core advantages of [small footprint/low operating cost/high treatment efficiency/easy operation and maintenance], the product is widely applicable to [application scenarios such as urban communities, industrial parks, livestock and poultry farms, medical institutions, scenic spots]. The treated effluent can meet [specific standards such as GB18918-2002 Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants (Grade 1A) / local customized discharge standards], realizing harmless discharge or resource recycling of sewage
Core Advantages
- Up to 60–70% sludge reduction
- Closed-loop drying system with no secondary pollution
- Energy-efficient heat circulation
- Low noise and odor
- Compact modular design
- Automatic PLC control
- Easy operation and maintenance
- Efficient Purification & Compliance Assurance
Adopting [core technology name], it can rapidly decompose complex pollutants in sewage with a pollutant removal rate of up to [specific percentage, e.g., over 95%], ensuring stable compliance of effluent quality and strong adaptability to fluctuations in water quality. - Energy Conservation, Environmental Protection & Cost Control
Designed in line with energy-saving concepts, the equipment/agent [e.g., uses low-power motors/zero chemical addition with biological strains/circulating treatment process], significantly reducing energy consumption and chemical costs during operation. It also minimizes sludge production and lowers solid waste disposal expenses. - Flexible Adaptation & Easy Installation
To meet diverse scenario requirements, it offers [modular assembly/mobile deployment/customized configuration] solutions, occupying only [specific ratio, e.g., 60%] of the area of traditional processes. Whether for new projects or renovation of old facilities, installation and commissioning can be completed quickly. - Intelligent Management & Hassle-Free Operation
Equipped with [intelligent sensors/Internet of Things (IoT) monitoring platform/automatic dosing system], it can real-time monitor water quality indicators and equipment operating status, supporting remote control and fault early warning. No on-site personnel are required, reducing the threshold for manual operation and maintenance. - Green Sustainability & Resource Recycling
The treated effluent can be used for [farmland irrigation/landscaping irrigation/industrial cooling water/municipal miscellaneous use] as needed, realizing water resource recycling. Sludge can be converted into [organic fertilizer raw materials/biomass fuel] after further treatment, aligning with green development concepts.
Application Scope
- Municipal sludge drying
- Industrial sludge reduction
- Chemical industry sludge drying
- Food processing sludge drying
- Textile sludge drying
- Pre-incineration sludge reduction
- Landfill reduction before final disposal
- Municipal Field: Urban domestic sewage treatment plants, centralized sewage treatment in urban villages, black and odorous water body remediation of rivers
- Industrial Field: Treatment of production wastewater from food processing, textile printing and dyeing, chemical industry, electroplating, papermaking and other industries
- Agricultural Field: Livestock and poultry breeding wastewater, farmland irrigation tailwater, aquaculture water circulation treatment
- People's Livelihood Field: Medical institution sewage, sewage from schools/hotels/scenic spots, decentralized rural sewage treatment
Service Guarantee
SFC provides technical support for sludge drying projects, including:
- Sludge testing and evaluation
- Customized sludge drying solution
- Equipment selection and process layout support
- Installation and commissioning support
- After-sales technical support
For accurate drying system selection, customers are advised to provide sludge source, inlet moisture content, target outlet moisture content, daily sludge quantity, working hours and site conditions.
- Customized Solutions: Provide one-on-one technical scheme design based on customers' water quality, water volume, site conditions and discharge standards.
- Full-Process Service: Cover one-stop services including scheme design → production and manufacturing → installation and commissioning → personnel training → after-sales maintenance.
- After-Sales Response: Establish a 7×24-hour after-sales service system. After a fault report, response within [specific time, e.g., 2 hours] and on-site handling within 24 hours.
- Long-Term Cooperation: Offer value-added services such as chemical supply, equipment inspection and technical upgrading to ensure long-term stable operation of the product.
Parameter
| Model Spec. |
SFC-TR1000 | SFC-TR1500 | SFC-TR2000 | SFC-TR3000 | SFC-TR4500 | SFC-TR6000 | SFC-TR9000 | |
| Batch Sludge Capacity (L) | 1000 | 1500 | 2000 | 3000 | 4500 | 6000 | 9000 | |
| Water Removal Capacity(kg/h) | 21-35 | 33-55 | 45-70 | 66-120 | 100-180 | 120-240 | 200-360 | |
| Power Consumption (estimated）(kW) | 15 | 25 | 45 | 45 | 75 | 100 | 145 | |
| Specific Energy Consumption(kWh/kg water) | 0.4-0.55 | 0.4-0.55 | 0.4-0.55 | 0.4-0.55 | 0.4-0.55 | 0.4-0.55 | 0.4-0.55 | |
| External Dimensions(W×L×H)(mm) | 1200×2000×1700 | 2200×1500×2000 | 2100×2000×1700 | 1800×2400×2000 | 2350×3000×3000 | 7445×9712×4848 | (2350×3000×3000)×2 | |
Item | Technical Specifications |
|---|---|
| Treatment Capacity | [5-500 m³/d (equipment); 1kg agent treats XX m³ sewage (agent)] |
| Inlet Water Quality | COD≤[ ]mg/L, Ammonia Nitrogen≤[ ]mg/L, SS≤[ ]mg/L |
| Effluent Standard | [XXX Standard] Grade XXX |
| Operating Power/Dosage | [XX kW; XX g/m³ sewage] |
| Floor Area/Storage | [XX ㎡; cool & dry place] |
Advantages
Integrated R&D Strength
Backed by cooperation with leading domestic universities, we continuously develop efficient and reliable sludge treatment equipment, ensuring advanced technology and stable long-term performance.
Complete Product Range
We supply sludge dewatering machines, thickeners, dryers, dosing systems and full disposal solutions, meeting both single-equipment demands and integrated system requirements.
One-Stop Solutions
From technical consultation and solution design to on-site installation and commissioning, we provide end-to-end services tailored to each customer’s operating conditions.
Global Project Experience
Our equipment is widely applied in municipal and industrial wastewater treatment and has been successfully exported to Southeast Asia, Russia and South America.
Successful Cases
SST Screw Sludge Thickener Project in Shaanxi
TR Reciprocating Circulation Sludge Drying Project in Jiangsu
FTE3 Belt Sludge Dewatering Project in Anhui
SD High-pressure Belt Sludge Deep Dewatering Project in Liaoning
FTB Rotary Drum Sludge Dewatering Project in Suzhou
FBT Belt Sludge Thickener Project in Hubei
