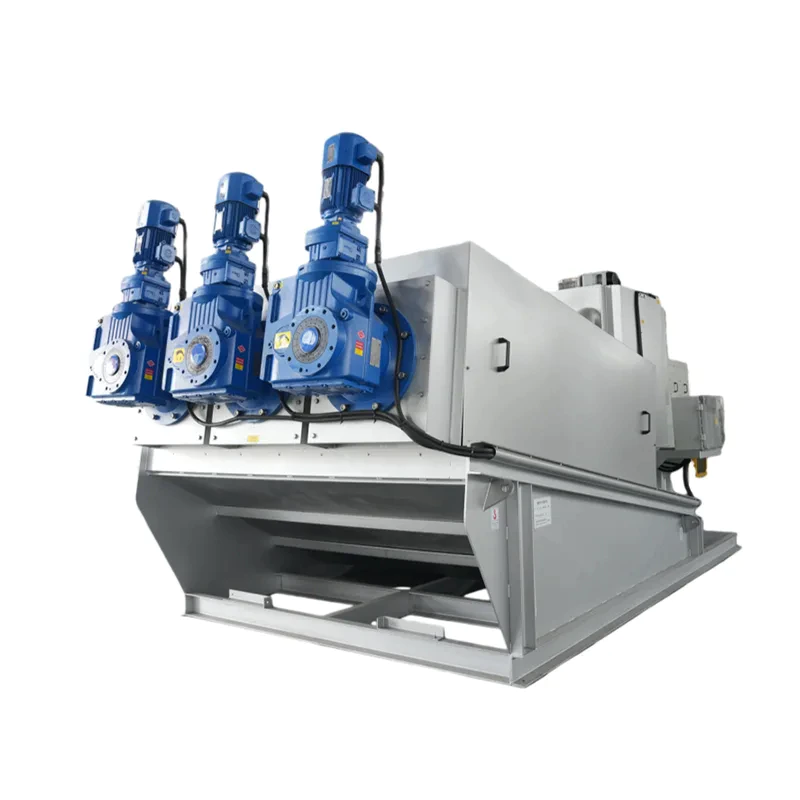

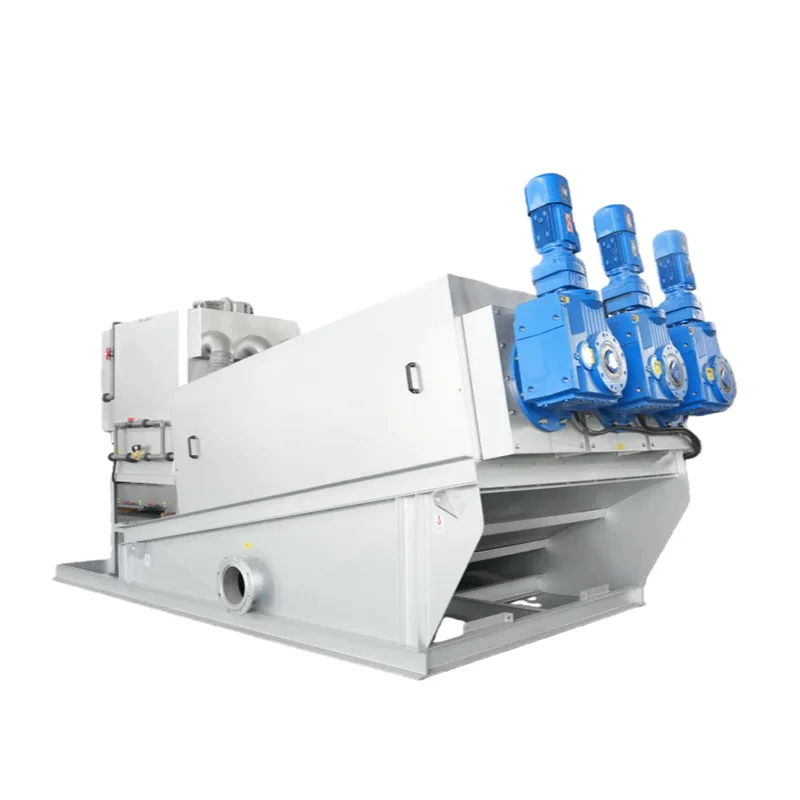

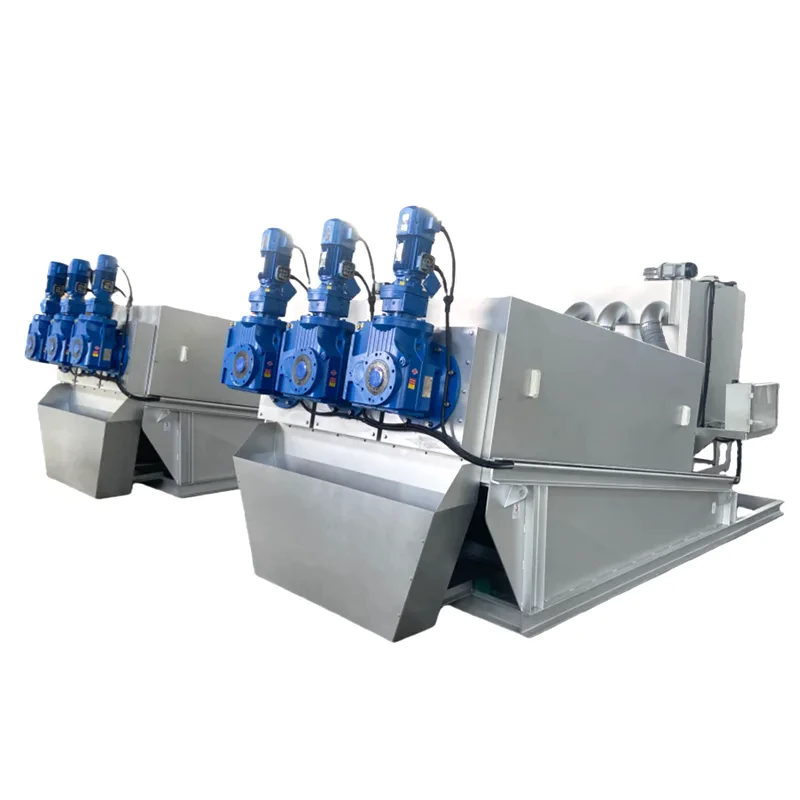

DL-Screw Sludge Dewatering Machine
A continuous screw press sludge dewatering machine that combines sludge thickening and press dewatering in one compact unit.
A continuous screw press sludge dewatering machine that combines sludge thickening and press dewatering in one compact unit.
Product Overview
The DL Series Screw Sludge Dewatering Machine is designed for continuous sludge dewatering. It uses fixed rings, moving rings and a screw filter structure to complete sludge thickening and press dewatering in one machine.
After sludge is mixed with polymer in the flocculation tank, stable sludge flocs enter the dewatering body. The screw shaft pushes the sludge forward, while filtrate is discharged through the gaps between the rings.
In the thickening section, filtrate is quickly discharged through the relative movement between fixed rings and moving rings. In the dewatering section, the screw chamber volume gradually shrinks, and the internal pressure increases through the pressure plate. The sludge is compressed step by step and finally discharged as sludge cake.
The gap in the thickening section is 0.5 mm, and the gap in the dewatering section is 0.3 mm and 0.15 mm. As the screw pitch becomes narrower from the thickening section to the dewatering section, the equipment generates pressure and discharges dewatered sludge cake.

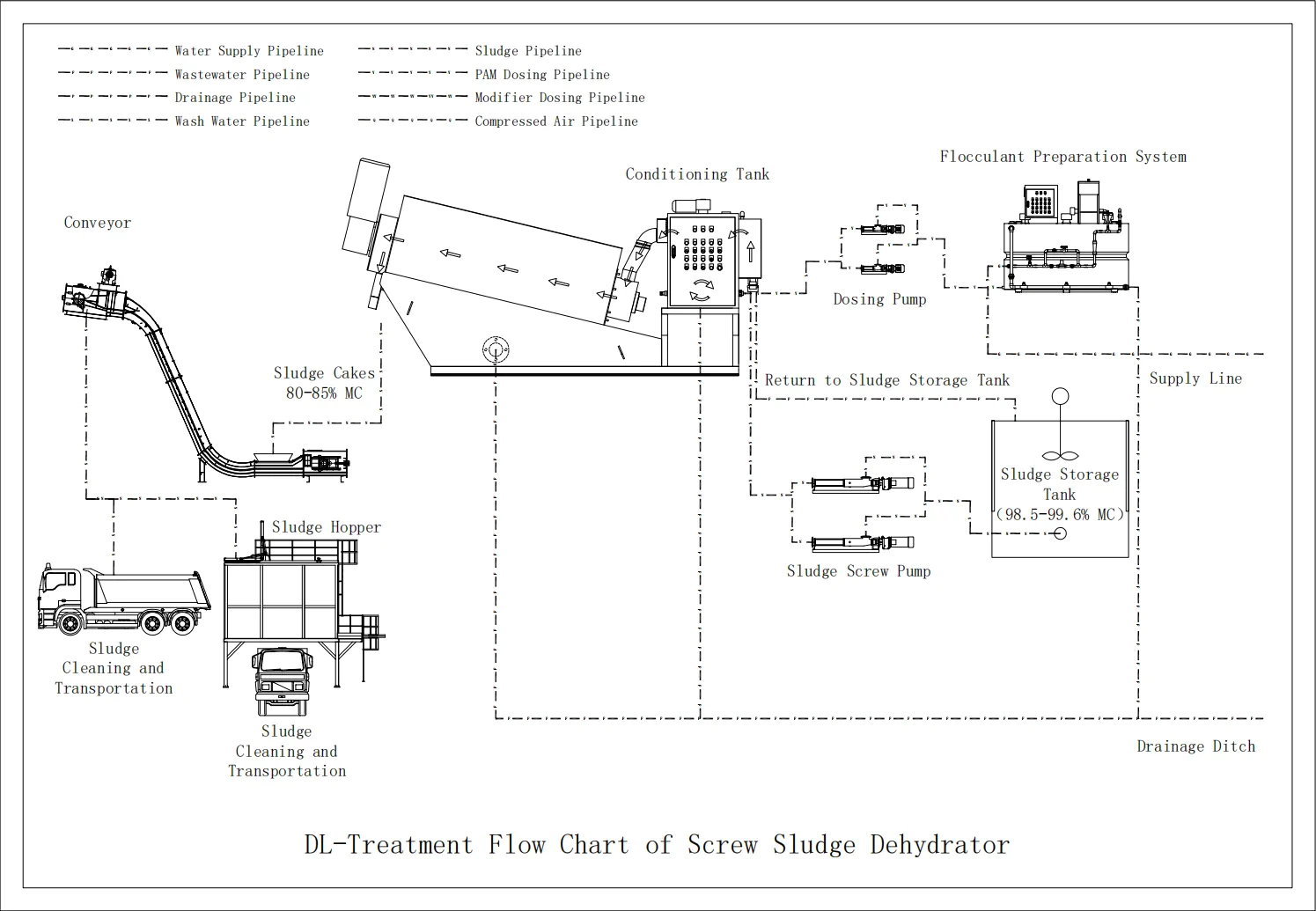

The basic process flow is:
Flocculation → Screw Conveying → Filtration → Press Dewatering → Sludge Cake Discharge
This product is a professional sewage treatment solution developed for [target sewage types such as municipal domestic sewage/industrial organic wastewater/breeding wastewater/medical wastewater]. Integrating [core technologies such as biological treatment/membrane separation/advanced oxidation/intelligent control], it can efficiently remove pollutants including COD, BOD, ammonia nitrogen, total phosphorus, suspended solids, and toxic and harmful substances from sewage. With core advantages of [small footprint/low operating cost/high treatment efficiency/easy operation and maintenance], the product is widely applicable to [application scenarios such as urban communities, industrial parks, livestock and poultry farms, medical institutions, scenic spots]. The treated effluent can meet [specific standards such as GB18918-2002 Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants (Grade 1A) / local customized discharge standards], realizing harmless discharge or resource recycling of sewage
Core Advantages
- Completes sludge thickening and press dewatering in one machine
- Anti-clogging structure with moving rings cleaning the gaps during operation
- Low energy consumption
- Compact structure and stable operation
- Automatic continuous operation
- Low maintenance cost with simple structure and fewer wearing parts
- Efficient Purification & Compliance Assurance
Adopting [core technology name], it can rapidly decompose complex pollutants in sewage with a pollutant removal rate of up to [specific percentage, e.g., over 95%], ensuring stable compliance of effluent quality and strong adaptability to fluctuations in water quality. - Energy Conservation, Environmental Protection & Cost Control
Designed in line with energy-saving concepts, the equipment/agent [e.g., uses low-power motors/zero chemical addition with biological strains/circulating treatment process], significantly reducing energy consumption and chemical costs during operation. It also minimizes sludge production and lowers solid waste disposal expenses. - Flexible Adaptation & Easy Installation
To meet diverse scenario requirements, it offers [modular assembly/mobile deployment/customized configuration] solutions, occupying only [specific ratio, e.g., 60%] of the area of traditional processes. Whether for new projects or renovation of old facilities, installation and commissioning can be completed quickly. - Intelligent Management & Hassle-Free Operation
Equipped with [intelligent sensors/Internet of Things (IoT) monitoring platform/automatic dosing system], it can real-time monitor water quality indicators and equipment operating status, supporting remote control and fault early warning. No on-site personnel are required, reducing the threshold for manual operation and maintenance. - Green Sustainability & Resource Recycling
The treated effluent can be used for [farmland irrigation/landscaping irrigation/industrial cooling water/municipal miscellaneous use] as needed, realizing water resource recycling. Sludge can be converted into [organic fertilizer raw materials/biomass fuel] after further treatment, aligning with green development concepts.
Application Scope
- Municipal wastewater treatment plants
- Industrial wastewater treatment projects
- Food and beverage wastewater treatment
- Slaughterhouse and livestock wastewater treatment
- Chemical wastewater treatment
- Pharmaceutical wastewater treatment
- Printing and dyeing wastewater treatment
- Paper mill wastewater treatment
- Decentralized wastewater treatment stations
- Municipal Field: Urban domestic sewage treatment plants, centralized sewage treatment in urban villages, black and odorous water body remediation of rivers
- Industrial Field: Treatment of production wastewater from food processing, textile printing and dyeing, chemical industry, electroplating, papermaking and other industries
- Agricultural Field: Livestock and poultry breeding wastewater, farmland irrigation tailwater, aquaculture water circulation treatment
- People's Livelihood Field: Medical institution sewage, sewage from schools/hotels/scenic spots, decentralized rural sewage treatment
Service Guarantee
Shanghai Fuchan Machinery provides technical support for sludge dewatering projects, including:
- Sludge testing and technical evaluation
- Customized sludge dewatering solution design
- Equipment selection and process layout support
- Installation and commissioning guidance
- Operator training and maintenance support
- Long-term spare parts and technical service
- Customized Solutions: Provide one-on-one technical scheme design based on customers' water quality, water volume, site conditions and discharge standards.
- Full-Process Service: Cover one-stop services including scheme design → production and manufacturing → installation and commissioning → personnel training → after-sales maintenance.
- After-Sales Response: Establish a 7×24-hour after-sales service system. After a fault report, response within [specific time, e.g., 2 hours] and on-site handling within 24 hours.
- Long-Term Cooperation: Offer value-added services such as chemical supply, equipment inspection and technical upgrading to ensure long-term stable operation of the product.
Parameter
| Model Spec. |
DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 | DL-304 | DL-351 | DL-352 | DL-353 | DL-354 | DL-401 | DL-402 | DL-403 | DL-404 | |
| Inlet Consistency(S.S.0.6～5.0%) | 0.1～0.3 | 0.2～0.6 | 0.45～1.5 | 0.9～3 | 1.5～5 | 3～10 | 4.5～15 | 6～20 | 2.25～7.5 | 4.5～15 | 6.75～22.5 | 9～30 | 4.5～15 | 9～30 | 13.5～45 | 18～60 | |
| D.S. (kg/h) Dried Sludge |
1.5～4.5 | 3～9 | 7.5～22.5 | 15～45 | 25～75 | 50～150 | 75～225 | 100～300 | 37.5～115 | 75～230 | 112.5～345 | 150～460 | 75～225 | 150～450 | 225～675 | 300～900 | |
| Water Conten Rate(%) | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | 78～85 | |
| Screw Specifications Diameter(mm)×Quantity(Root) |
φ85×1 | φ85×2 | φ170×1 | φ170×2 | φ285×1 | φ285×2 | φ285×3 | φ285×4 | φ330×1 | φ330×2 | φ330×3 | φ330×4 | φ400×1 | φ400×2 | φ400×3 | φ400×4 | |
| Power Consumption(KW) | Screw Shaft Drive Motor | 0.18 | 0.18×2 | 0.25 | 0.25×2 | 0.55 | 0.55×2 | 0.55×3 | 0.55×4 | 0.75 | 0.75×2 | 0.75×3 | 0.75×4 | 1.1 | 1.1×2 | 1.1×3 | 1.1×4 |
| Flocculation Tank Agitator Motor | 0.18 | 0.18 | 0.25 | 0.25 | 0.37 | 0.37 | 0.37 | 0.37×2 | 0.37 | 0.37 | 0.55 | 0.37×2 | 0.37 | 0.55 | 0.75 | 0.55×2 | |
| Lower Collecting Trav for Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| External Dimensions(mm) | L | 1950 | 1950 | 2700 | 2890 | 3275 | 3505 | 3620 | 3395 | 3610 | 3820 | 3965 | 3770 | 4210 | 4475 | 4660 | 4440 |
| W | 750 | 1000 | 885 | 1100 | 1010 | 1360 | 1835 | 2335 | 1035 | 1435 | 1990 | 2540 | 1185 | 1635 | 2250 | 2850 | |
| H | 1130 | 1130 | 1355 | 1550 | 1500 | 1500 | 1555 | 1580 | 1750 | 1750 | 1770 | 1850 | 2000 | 2070 | 2120 | 2120 | |
| Reference Weight(kg) | 190 | 300 | 500 | 700 | 1050 | 1800 | 2550 | 3300 | 1200 | 2100 | 3100 | 3900 | 2050 | 3700 | 5500 | 7100 | |
Item | Technical Specifications |
|---|---|
| Treatment Capacity | [5-500 m³/d (equipment); 1kg agent treats XX m³ sewage (agent)] |
| Inlet Water Quality | COD≤[ ]mg/L, Ammonia Nitrogen≤[ ]mg/L, SS≤[ ]mg/L |
| Effluent Standard | [XXX Standard] Grade XXX |
| Operating Power/Dosage | [XX kW; XX g/m³ sewage] |
| Floor Area/Storage | [XX ㎡; cool & dry place] |
Advantages
Integrated R&D Strength
Backed by cooperation with leading domestic universities, we continuously develop efficient and reliable sludge treatment equipment, ensuring advanced technology and stable long-term performance.
Complete Product Range
We supply sludge dewatering machines, thickeners, dryers, dosing systems and full disposal solutions, meeting both single-equipment demands and integrated system requirements.
One-Stop Solutions
From technical consultation and solution design to on-site installation and commissioning, we provide end-to-end services tailored to each customer’s operating conditions.
Global Project Experience
Our equipment is widely applied in municipal and industrial wastewater treatment and has been successfully exported to Southeast Asia, Russia and South America.
Successful Cases
SST Screw Sludge Thickener Project in Shaanxi
TR Reciprocating Circulation Sludge Drying Project in Jiangsu
FTE3 Belt Sludge Dewatering Project in Anhui
SD High-pressure Belt Sludge Deep Dewatering Project in Liaoning
FTB Rotary Drum Sludge Dewatering Project in Suzhou
FBT Belt Sludge Thickener Project in Hubei
