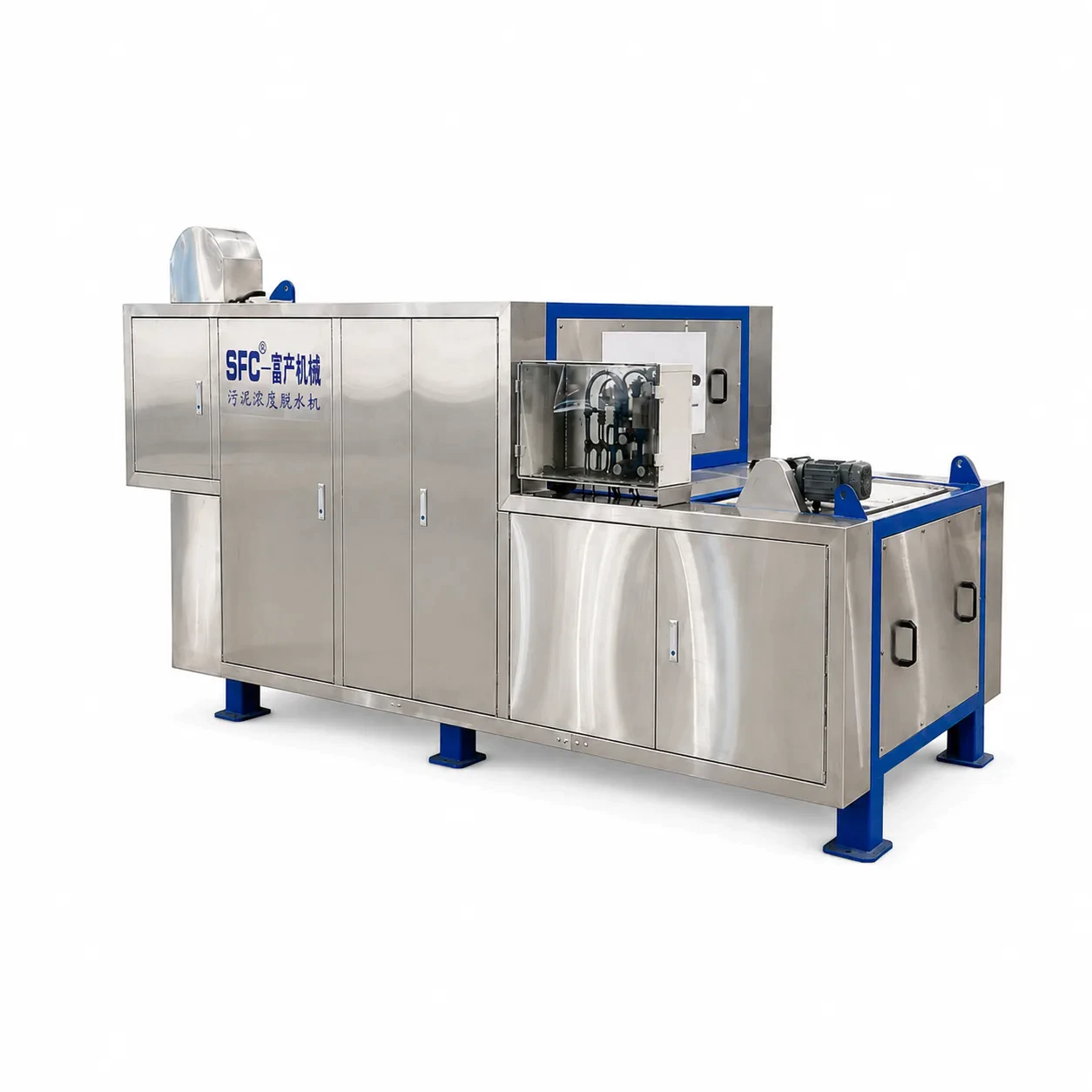

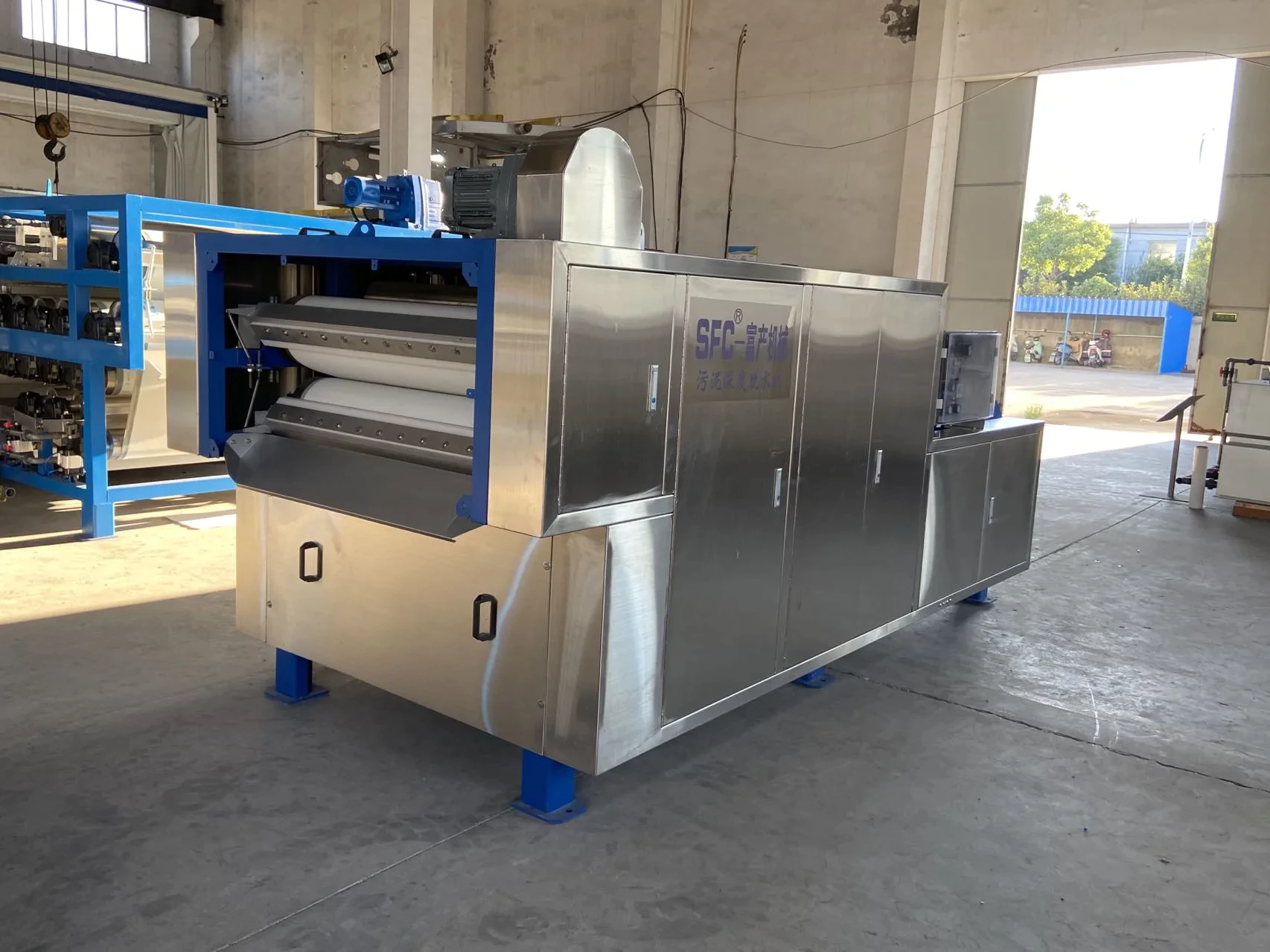

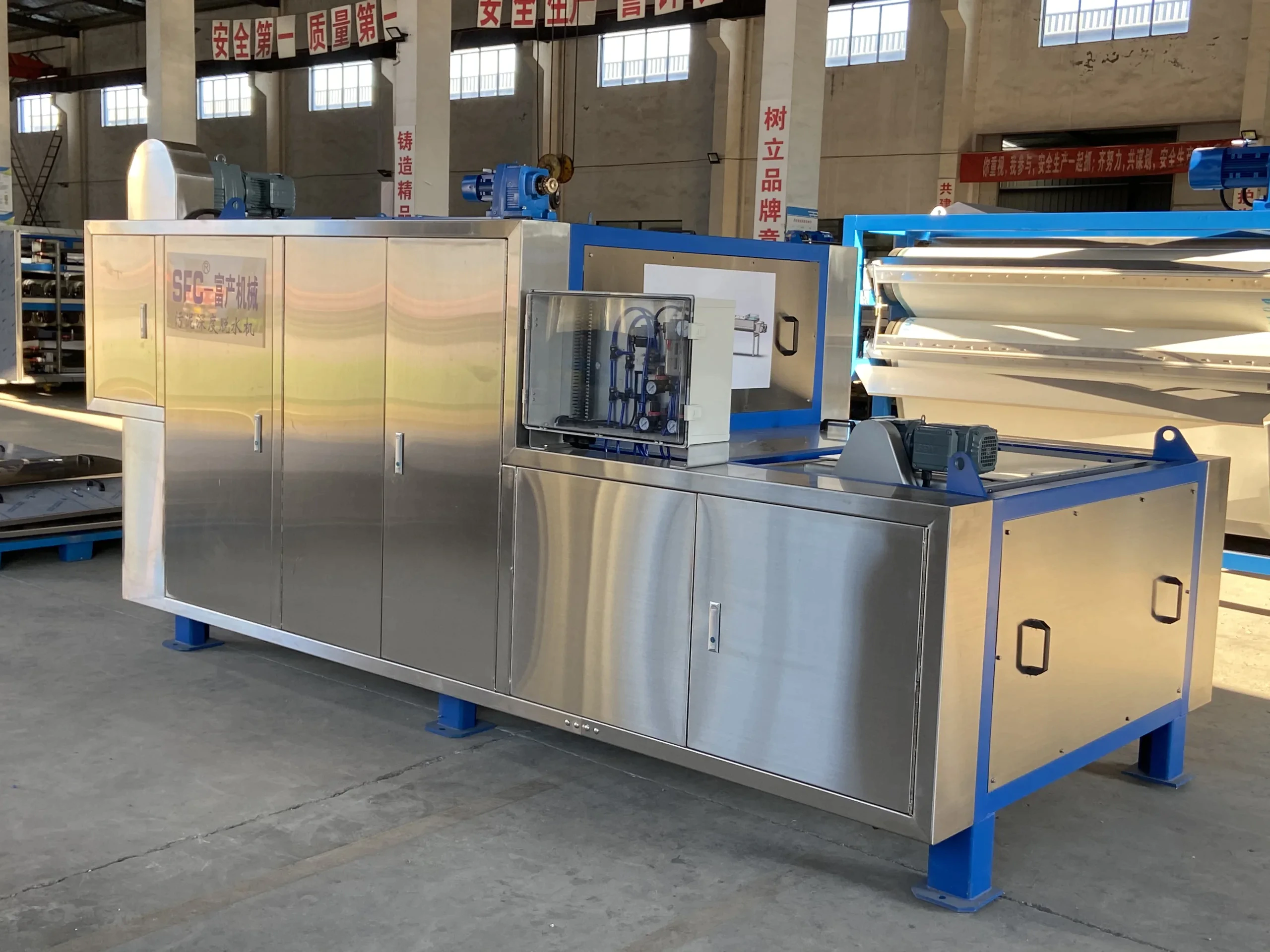

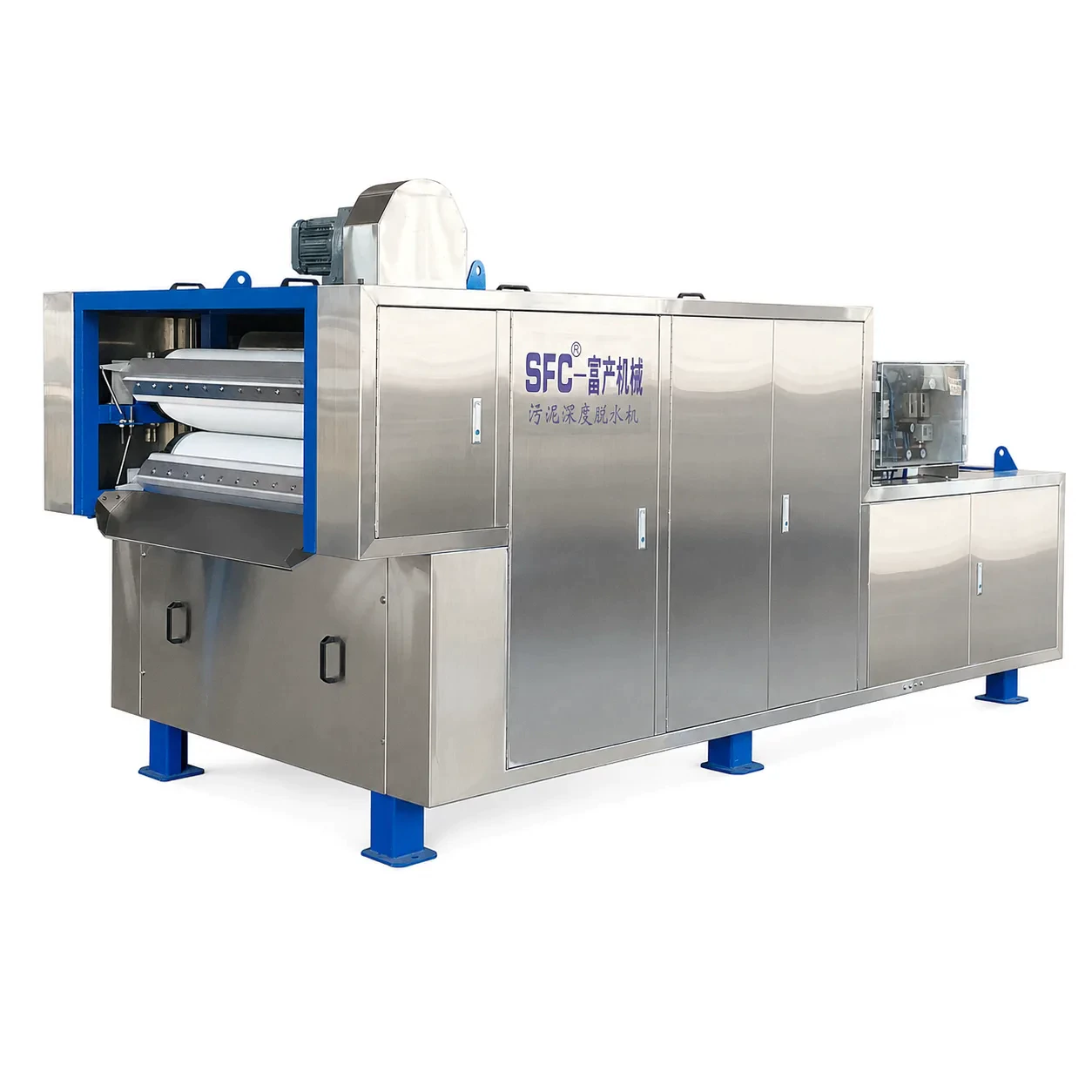

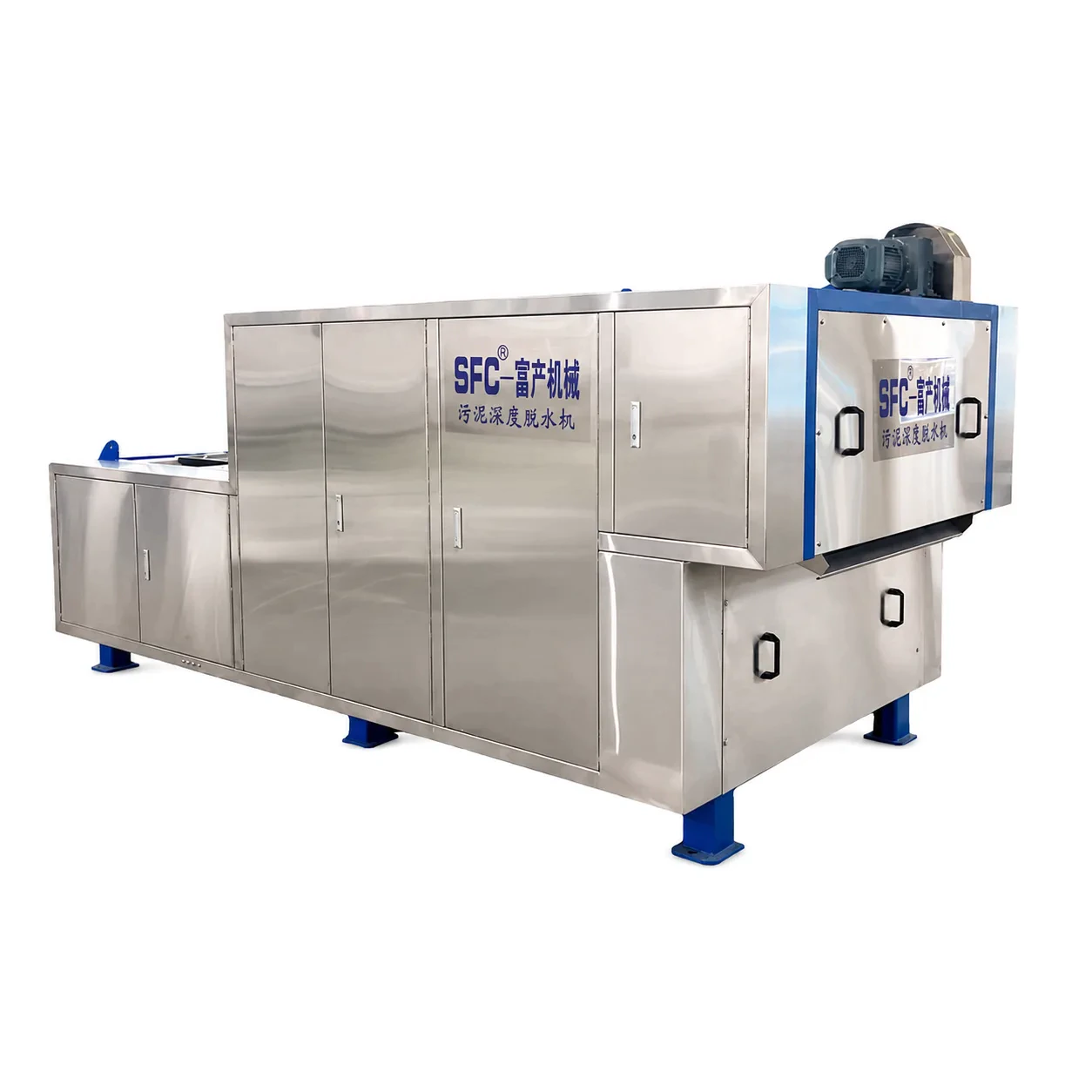

ZSD High-pressure Belt Sludge Deep Dewatering System
A low-inlet high-pressure belt sludge deep dewatering machine designed for secondary sludge cake moisture reduction and easier maintenance.
A low-inlet high-pressure belt sludge deep dewatering machine designed for secondary sludge cake moisture reduction and easier maintenance.
Product Overview
The ZSD Series High Pressure Belt Sludge Deep Dewatering Machine is designed for secondary deep dewatering of sludge cake after belt press, centrifuge or screw press dewatering.
It is especially suitable for projects with sufficient floor space and higher requirements for maintenance convenience. With a low sludge inlet and bearing maintenance height below 1.6 m, the ZSD system allows easier bearing inspection, roller maintenance and daily operation.
The system treats sludge cake that has already been dewatered by primary mechanical dewatering equipment. Before entering the ZSD machine, sludge cake is conditioned and modified by chemical agents. The modified sludge is then mixed, crushed, uniformly distributed and pressed through the high-pressure belt system.
The purpose is to release more water from the sludge cake and reduce final moisture content for transportation, drying, incineration or disposal. Under suitable conditioning conditions, sludge cake moisture can be further reduced from around 80% to below 70% or even below 60%.

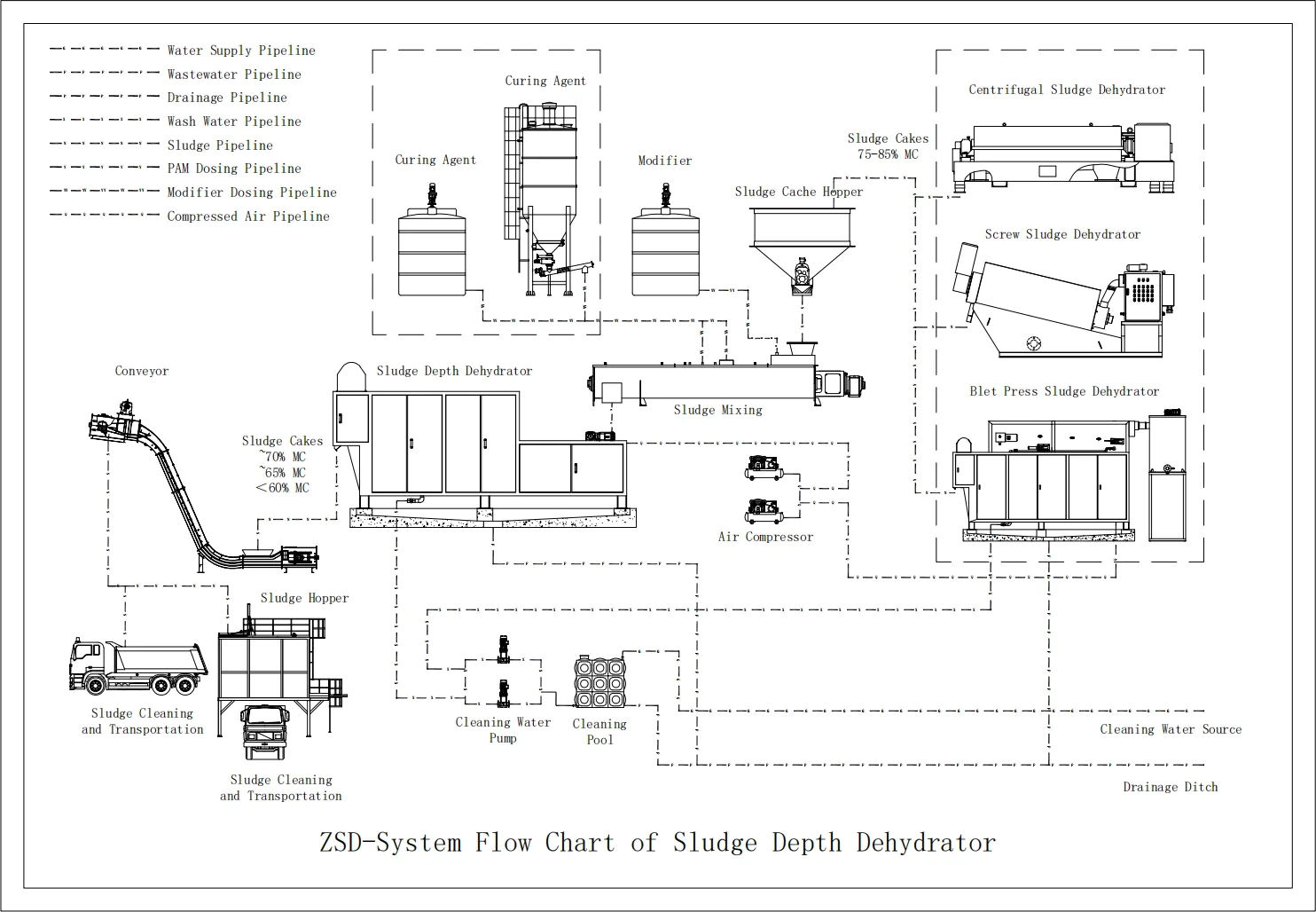

The basic process flow is:
Primary Dewatered Sludge Cake → Conditioning Agent Dosing → Efficient Mixing → Uniform Distribution → ZSD High-Pressure Dewatering → Final Cake Output
This product is a professional sewage treatment solution developed for [target sewage types such as municipal domestic sewage/industrial organic wastewater/breeding wastewater/medical wastewater]. Integrating [core technologies such as biological treatment/membrane separation/advanced oxidation/intelligent control], it can efficiently remove pollutants including COD, BOD, ammonia nitrogen, total phosphorus, suspended solids, and toxic and harmful substances from sewage. With core advantages of [small footprint/low operating cost/high treatment efficiency/easy operation and maintenance], the product is widely applicable to [application scenarios such as urban communities, industrial parks, livestock and poultry farms, medical institutions, scenic spots]. The treated effluent can meet [specific standards such as GB18918-2002 Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants (Grade 1A) / local customized discharge standards], realizing harmless discharge or resource recycling of sewage
Core Advantages
- Secondary deep dewatering after primary mechanical dewatering
- Low sludge inlet for easier connection with upstream conveying system
- Bearing maintenance height below 1.6 m
- Fully enclosed structure for cleaner operation
- Adjustable sludge moisture content according to project demand
- Suitable for sites with enough floor area and high maintenance convenience requirements
- Efficient Purification & Compliance Assurance
Adopting [core technology name], it can rapidly decompose complex pollutants in sewage with a pollutant removal rate of up to [specific percentage, e.g., over 95%], ensuring stable compliance of effluent quality and strong adaptability to fluctuations in water quality. - Energy Conservation, Environmental Protection & Cost Control
Designed in line with energy-saving concepts, the equipment/agent [e.g., uses low-power motors/zero chemical addition with biological strains/circulating treatment process], significantly reducing energy consumption and chemical costs during operation. It also minimizes sludge production and lowers solid waste disposal expenses. - Flexible Adaptation & Easy Installation
To meet diverse scenario requirements, it offers [modular assembly/mobile deployment/customized configuration] solutions, occupying only [specific ratio, e.g., 60%] of the area of traditional processes. Whether for new projects or renovation of old facilities, installation and commissioning can be completed quickly. - Intelligent Management & Hassle-Free Operation
Equipped with [intelligent sensors/Internet of Things (IoT) monitoring platform/automatic dosing system], it can real-time monitor water quality indicators and equipment operating status, supporting remote control and fault early warning. No on-site personnel are required, reducing the threshold for manual operation and maintenance. - Green Sustainability & Resource Recycling
The treated effluent can be used for [farmland irrigation/landscaping irrigation/industrial cooling water/municipal miscellaneous use] as needed, realizing water resource recycling. Sludge can be converted into [organic fertilizer raw materials/biomass fuel] after further treatment, aligning with green development concepts.
Application Scope
- Municipal sludge deep dewatering
- Industrial sludge deep dewatering
- Sludge volume reduction projects
- New sludge treatment rooms with sufficient floor space
- Pre-treatment before sludge drying
- Pre-treatment before sludge incineration
- Projects requiring convenient roller or bearing maintenance
- Municipal Field: Urban domestic sewage treatment plants, centralized sewage treatment in urban villages, black and odorous water body remediation of rivers
- Industrial Field: Treatment of production wastewater from food processing, textile printing and dyeing, chemical industry, electroplating, papermaking and other industries
- Agricultural Field: Livestock and poultry breeding wastewater, farmland irrigation tailwater, aquaculture water circulation treatment
- People's Livelihood Field: Medical institution sewage, sewage from schools/hotels/scenic spots, decentralized rural sewage treatment
Service Guarantee
SFC provides full-process support from sludge cake testing to system commissioning.
Service support includes:
- Sludge cake evaluation
- Space and maintenance layout assessment
- Conditioning strategy
- System configuration
- Installation and commissioning guidance
- Spare parts and maintenance support
For accurate model selection, customers are advised to provide sludge source, current cake moisture, target cake moisture, daily sludge volume, available floor area, maintenance space and final disposal method.
- Customized Solutions: Provide one-on-one technical scheme design based on customers' water quality, water volume, site conditions and discharge standards.
- Full-Process Service: Cover one-stop services including scheme design → production and manufacturing → installation and commissioning → personnel training → after-sales maintenance.
- After-Sales Response: Establish a 7×24-hour after-sales service system. After a fault report, response within [specific time, e.g., 2 hours] and on-site handling within 24 hours.
- Long-Term Cooperation: Offer value-added services such as chemical supply, equipment inspection and technical upgrading to ensure long-term stable operation of the product.
Parameter
| Model Spec. |
SFC-ZSD05 | SFC-ZSD10 | SFC-ZSD15 | SFC-ZSD20 | SFC-ZSD25 | |
| Treating Capacity(t/h) Sludge Inlet Consistency(S.S.15%～20%) |
0.3～0.7 | 0.8～1.7 | 1.3～2.8 | 1.8～4.0 | 2.3～5.0 | |
| D.S. (kg/h) Dried Sludge |
60～100 | 160～270 | 260～430 | 360～600 | 460～760 | |
| Water Conten Rate(%) | 65～75 | 65～75 | 65～75 | 65～75 | 65～75 | |
| Treating Capacity(t/h) Sludge Inlet Consistency(S.S.15%～20%) |
0.35～0.8 | 0.9～2.1 | 1.5～3.4 | 2.1～4.8 | 2.7～6.1 | |
| D.S. (kg/h) Dried Sludge |
70～120 | 190～320 | 310～520 | 430～720 | 550～920 | |
| Water Conten Rate(%) | 60～70 | 60～70 | 60～70 | 60～70 | 60～70 | |
| Power Consumption (KW) | Driving Motor (Speed Variable) | 0.55 | 1.10 | 1.50 | 2.20 | 3.00 |
| Sludge Mixer (Speed Variable) | 2.20 | 2.20 | 3.00 | 4.00 | 5.50 | |
| Sludge Distribution Spiral(Speed Variable) | 0.25 | 0.25 | 0.55 | 1.10 | 1.50 | |
| Sludge Crushing Screw | 0.37 | 0.37 | 0.37 | 0.55 | 0.75 | |
| External Dimensions(mm) | L | 3600 | 3750 | 4430 | 4650 | 4650 |
| W | 1270 | 1770 | 2310 | 2810 | 3310 | |
| H | 1850 | 1940 | 2220 | 2330 | 2500 | |
Item | Technical Specifications |
|---|---|
| Treatment Capacity | [5-500 m³/d (equipment); 1kg agent treats XX m³ sewage (agent)] |
| Inlet Water Quality | COD≤[ ]mg/L, Ammonia Nitrogen≤[ ]mg/L, SS≤[ ]mg/L |
| Effluent Standard | [XXX Standard] Grade XXX |
| Operating Power/Dosage | [XX kW; XX g/m³ sewage] |
| Floor Area/Storage | [XX ㎡; cool & dry place] |
