Lamella Clarifier
A compact inclined plate settling system designed to improve suspended solids removal efficiency while reducing clarifier footprint.
A compact inclined plate settling system designed to improve suspended solids removal efficiency while reducing clarifier footprint.
Product Overview

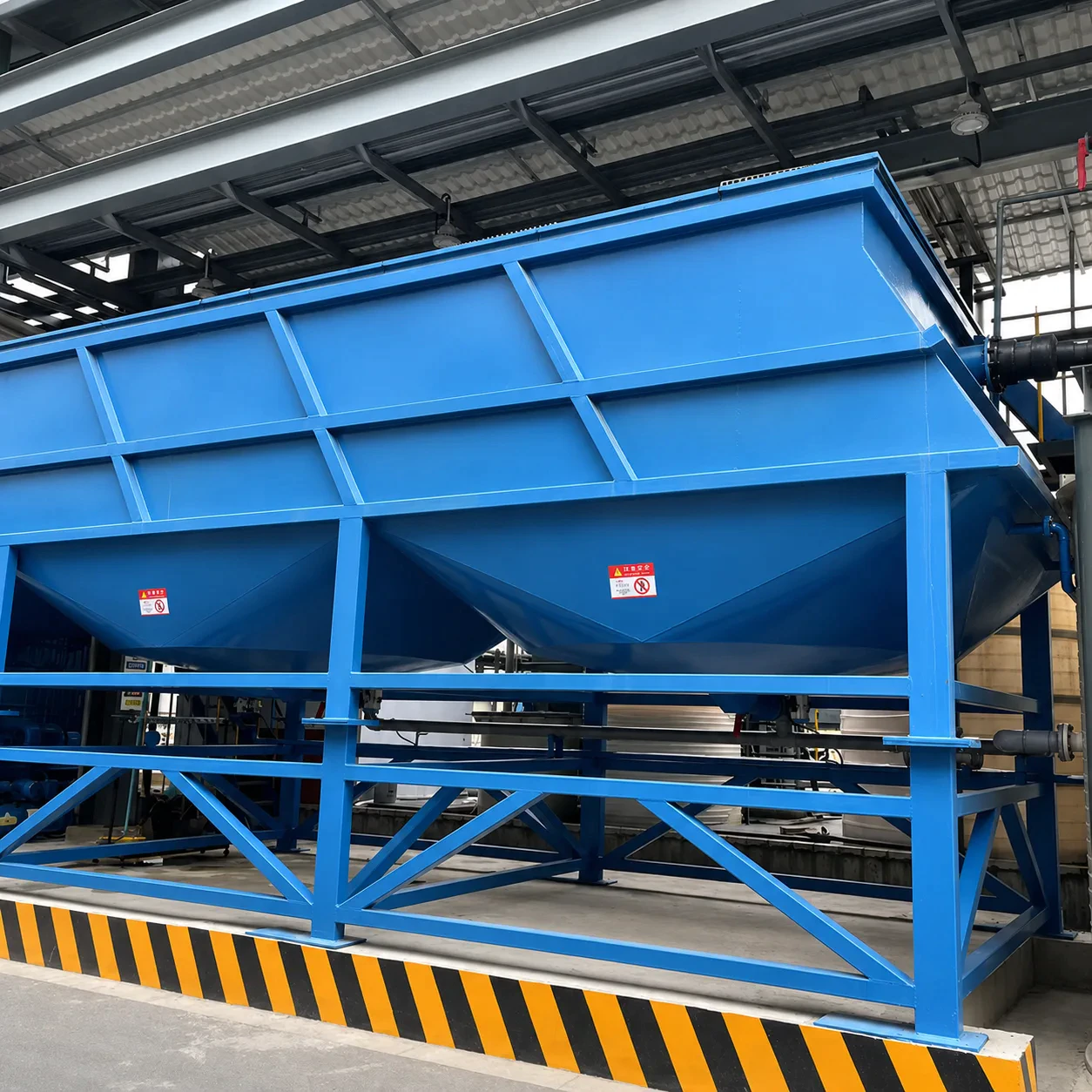

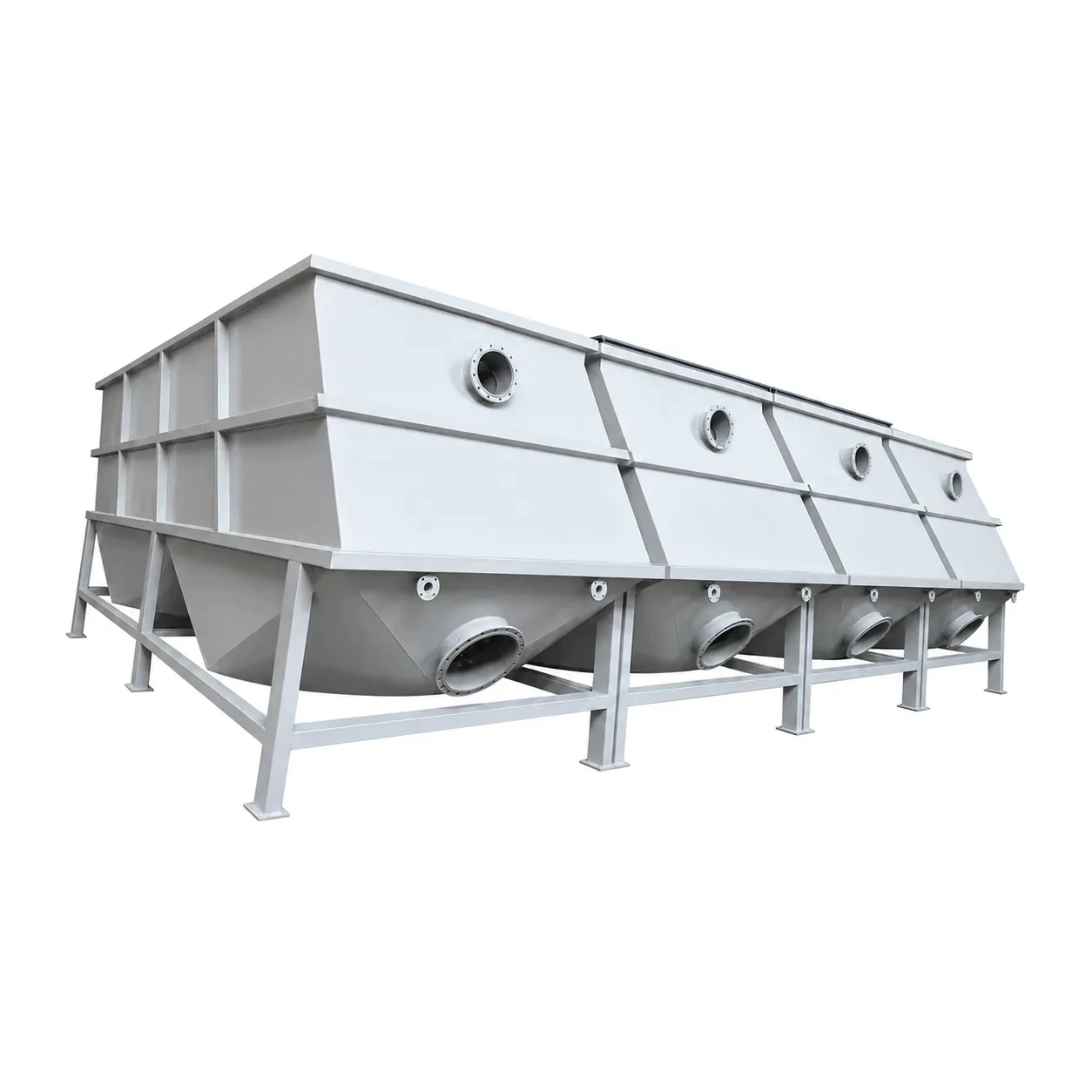

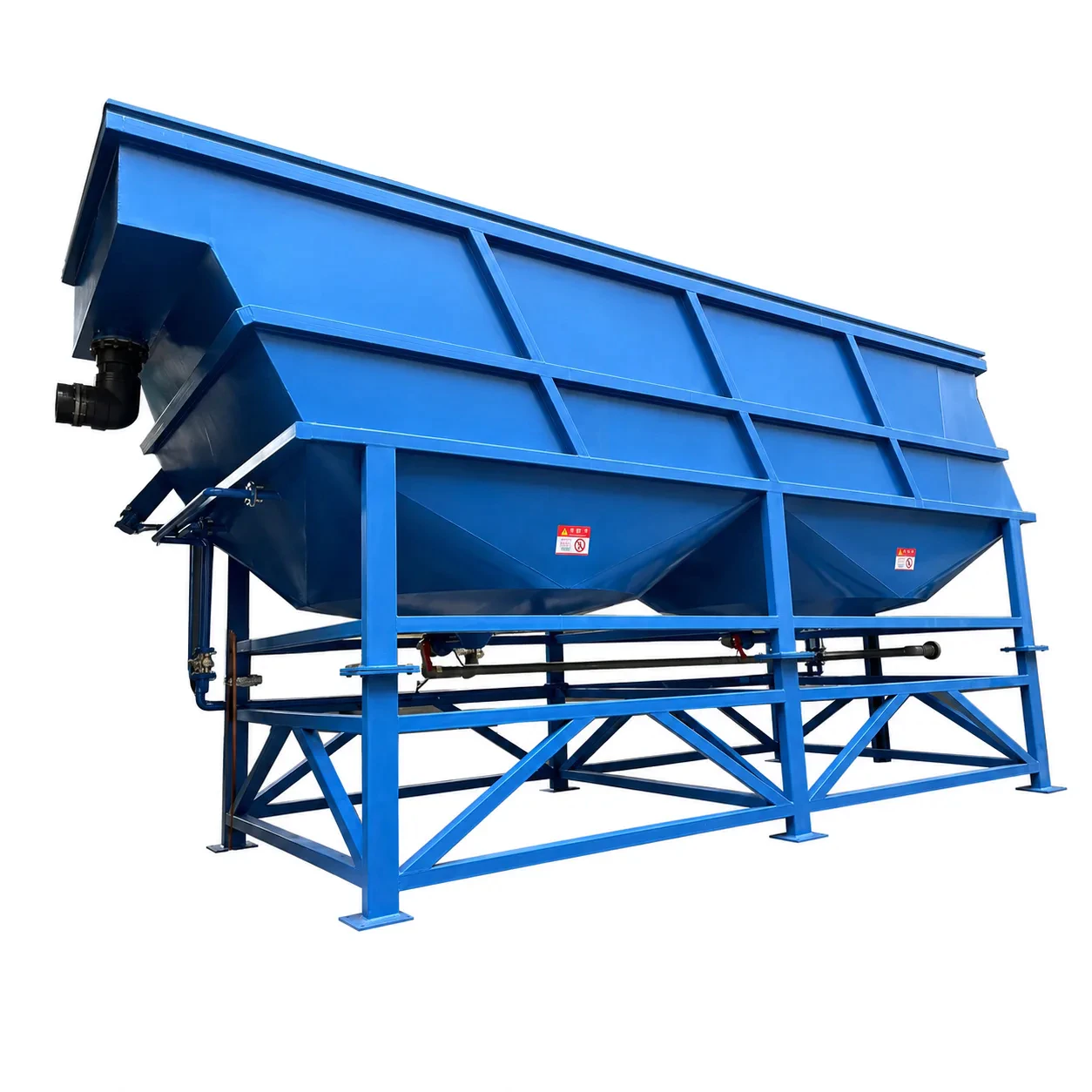

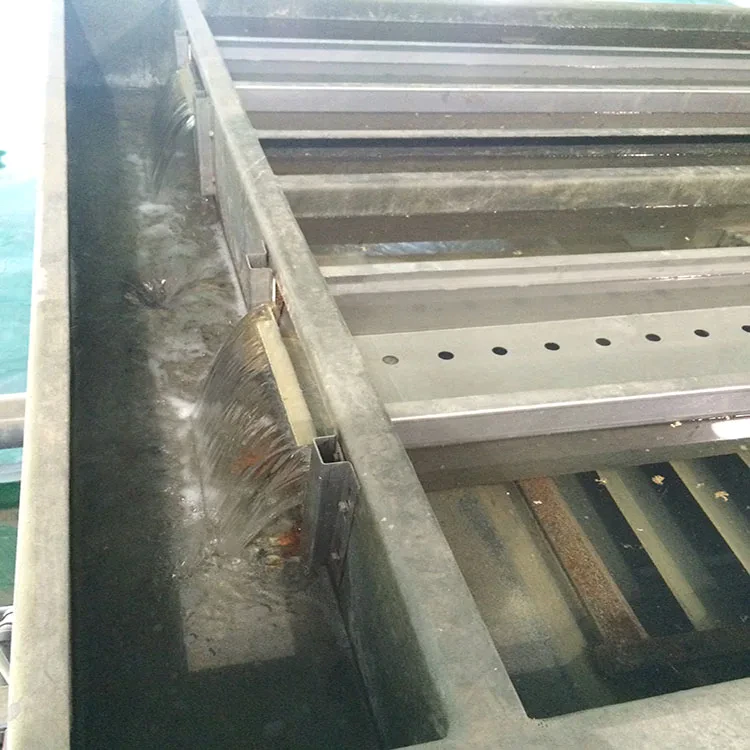

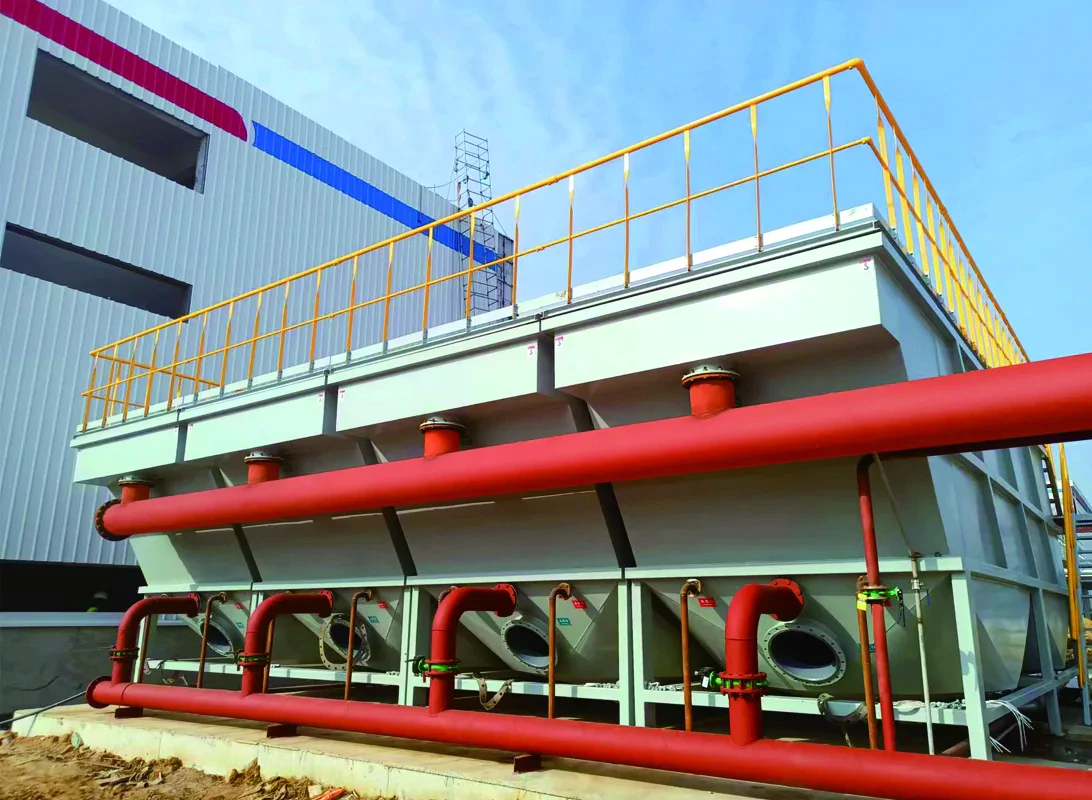

The Lamella Clarifier, also known as a Lamella Plate Clarifier or Inclined Plate Settler, is a compact solid-liquid separation system using multiple inclined plates inside the tank. These inclined plates divide the water depth into many shallow settling layers, increasing the effective settling area and shortening the settling path of suspended particles.
Compared with conventional clarifiers, the inclined plate structure improves settling efficiency, reduces footprint, and supports stable suspended solids removal in municipal and industrial wastewater treatment. Wastewater usually enters the clarifier after coagulation and flocculation. Suspended solids settle onto the inclined plate surface, slide down into the sludge collection area, and are discharged by the sludge removal system.
The system can be used for primary clarification, intermediate clarification, or advanced clarification. Plate material, plate spacing, tank material, sludge discharge method, mud scraper, and online backwashing system can be configured according to project requirements.
Typical Process Flow:
Wastewater Collection → Coagulation → Flocculation → Lamella Clarifier → Clarified Water Outlet → Filtration / Biological Treatment / Reuse / Discharge
Settled Sludge → Sludge Hopper → Sludge Thickening / Dewatering / Storage
This product is a professional sewage treatment solution developed for [target sewage types such as municipal domestic sewage/industrial organic wastewater/breeding wastewater/medical wastewater]. Integrating [core technologies such as biological treatment/membrane separation/advanced oxidation/intelligent control], it can efficiently remove pollutants including COD, BOD, ammonia nitrogen, total phosphorus, suspended solids, and toxic and harmful substances from sewage. With core advantages of [small footprint/low operating cost/high treatment efficiency/easy operation and maintenance], the product is widely applicable to [application scenarios such as urban communities, industrial parks, livestock and poultry farms, medical institutions, scenic spots]. The treated effluent can meet [specific standards such as GB18918-2002 Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants (Grade 1A) / local customized discharge standards], realizing harmless discharge or resource recycling of sewage
Core Advantages
- High Surface Loading
The surface loading can be 2–4 times higher than a traditional clarifier, depending on water quality and design requirements. - Compact Footprint
Multiple inclined plates increase the effective settling area inside a smaller tank volume. - Efficient Inclined Plate Separation
The inclined plate structure shortens the settling distance of suspended particles and supports stable solid-liquid separation. - Flexible Plate Configuration
Plate material, angle, and spacing can be customized according to wastewater properties and operating conditions. - Optional Online Backwashing
Online backwashing can be configured for wastewater that is prone to plate deposition. - Optional Mud Scraper
A mud scraper can be equipped to improve bottom sludge discharge and reduce sludge accumulation.
- Efficient Purification & Compliance Assurance
Adopting [core technology name], it can rapidly decompose complex pollutants in sewage with a pollutant removal rate of up to [specific percentage, e.g., over 95%], ensuring stable compliance of effluent quality and strong adaptability to fluctuations in water quality. - Energy Conservation, Environmental Protection & Cost Control
Designed in line with energy-saving concepts, the equipment/agent [e.g., uses low-power motors/zero chemical addition with biological strains/circulating treatment process], significantly reducing energy consumption and chemical costs during operation. It also minimizes sludge production and lowers solid waste disposal expenses. - Flexible Adaptation & Easy Installation
To meet diverse scenario requirements, it offers [modular assembly/mobile deployment/customized configuration] solutions, occupying only [specific ratio, e.g., 60%] of the area of traditional processes. Whether for new projects or renovation of old facilities, installation and commissioning can be completed quickly. - Intelligent Management & Hassle-Free Operation
Equipped with [intelligent sensors/Internet of Things (IoT) monitoring platform/automatic dosing system], it can real-time monitor water quality indicators and equipment operating status, supporting remote control and fault early warning. No on-site personnel are required, reducing the threshold for manual operation and maintenance. - Green Sustainability & Resource Recycling
The treated effluent can be used for [farmland irrigation/landscaping irrigation/industrial cooling water/municipal miscellaneous use] as needed, realizing water resource recycling. Sludge can be converted into [organic fertilizer raw materials/biomass fuel] after further treatment, aligning with green development concepts.
Application Scope
- Municipal wastewater treatment
- Industrial wastewater treatment
- Drinking water treatment
- Agricultural irrigation water clarification
- Food and beverage wastewater treatment
- Oil and petrochemical wastewater treatment
- Papermaking wastewater treatment
- Mining wastewater treatment
- Metal processing wastewater treatment
- Chemical wastewater treatment
- Textile wastewater treatment
- Primary clarification, secondary clarification, and advanced treatment stages
- Municipal Field: Urban domestic sewage treatment plants, centralized sewage treatment in urban villages, black and odorous water body remediation of rivers
- Industrial Field: Treatment of production wastewater from food processing, textile printing and dyeing, chemical industry, electroplating, papermaking and other industries
- Agricultural Field: Livestock and poultry breeding wastewater, farmland irrigation tailwater, aquaculture water circulation treatment
- People's Livelihood Field: Medical institution sewage, sewage from schools/hotels/scenic spots, decentralized rural sewage treatment
Service Guarantee
SFC provides technical support from water quality evaluation to equipment commissioning.
Before selection, SFC can evaluate flow rate, suspended solids concentration, turbidity, particle settling performance, pH, chemical dosing demand, and target effluent quality. Laboratory or pilot tests can be used to verify chemical dosage, floc settling behavior, and design parameters when needed.
The tank type, treatment capacity, tank material, inclined plate angle, plate spacing, sludge discharge method, mud scraper, and online backwashing system can be customized according to wastewater characteristics and project layout. Materials such as carbon steel with anti-corrosion coating, SS304, or SS316 can be selected according to wastewater corrosiveness.
- Customized Solutions: Provide one-on-one technical scheme design based on customers' water quality, water volume, site conditions and discharge standards.
- Full-Process Service: Cover one-stop services including scheme design → production and manufacturing → installation and commissioning → personnel training → after-sales maintenance.
- After-Sales Response: Establish a 7×24-hour after-sales service system. After a fault report, response within [specific time, e.g., 2 hours] and on-site handling within 24 hours.
- Long-Term Cooperation: Offer value-added services such as chemical supply, equipment inspection and technical upgrading to ensure long-term stable operation of the product.
Parameter
| Item | Reference Description |
|---|---|
| Equipment Type | Lamella Clarifier / Lamella Plate Clarifier |
| Main Function | Suspended solids and settleable particle removal |
| Process Position | Usually used after coagulation and flocculation |
| Surface Loading | 2–4 times that of traditional clarifier |
| Inclined Plate Angle | 55°–65° |
| Common Plate Angle | About 60° |
| Plate Material | PP / PVC / stainless steel optional |
| Plate Spacing | Customized |
| Tank Material | Carbon steel anti-corrosion / SS304 / SS316 |
| Sludge Discharge | Sludge hopper / valve / pump / mud scraper optional |
| Backwashing | Online backwashing optional |
| Model Selection Basis | Flow rate, SS, particle size, settling velocity, pH, target effluent quality |
Item | Technical Specifications |
|---|---|
| Treatment Capacity | [5-500 m³/d (equipment); 1kg agent treats XX m³ sewage (agent)] |
| Inlet Water Quality | COD≤[ ]mg/L, Ammonia Nitrogen≤[ ]mg/L, SS≤[ ]mg/L |
| Effluent Standard | [XXX Standard] Grade XXX |
| Operating Power/Dosage | [XX kW; XX g/m³ sewage] |
| Floor Area/Storage | [XX ㎡; cool & dry place] |
