RDAF High-Efficiency DAF System
A compact dissolved air flotation system for efficient removal of suspended solids, oil, grease, flocs, turbidity, COD, BOD and total phosphorus from wastewater.
A compact dissolved air flotation system for efficient removal of suspended solids, oil, grease, flocs, turbidity, COD, BOD and total phosphorus from wastewater.
Product Overview
The High-Efficiency Dissolved Air Flotation (DAF) System is a compact solid-liquid separation unit for industrial and municipal wastewater treatment.
The system uses pressurized dissolved air water to generate fine microbubbles. These microbubbles attach to suspended solids, oil droplets and flocs, reducing their apparent density and lifting them to the water surface. The floating scum is then removed by a skimmer, while clarified water is discharged from the clean water outlet area. This working principle is consistent with the common DAF process used for oil and solids removal in wastewater treatment.
DAF can be used for wastewater pretreatment, reclaimed water reuse, advanced treatment and phosphorus removal from tailwater. It is suitable for reducing SS, COD, BOD, oil and grease, turbidity and total phosphorus before downstream biological treatment, filtration, reuse or discharge.
Typical Process Flow:
Wastewater Collection → Coagulation Dosing → Flocculation → High-Efficiency DAF System → Scum Removal → Clarified Water Outlet → Biological Treatment / Filtration / Reuse / Discharge
Floating Scum → Sludge Handling / Dewatering
This product is a professional sewage treatment solution developed for [target sewage types such as municipal domestic sewage/industrial organic wastewater/breeding wastewater/medical wastewater]. Integrating [core technologies such as biological treatment/membrane separation/advanced oxidation/intelligent control], it can efficiently remove pollutants including COD, BOD, ammonia nitrogen, total phosphorus, suspended solids, and toxic and harmful substances from sewage. With core advantages of [small footprint/low operating cost/high treatment efficiency/easy operation and maintenance], the product is widely applicable to [application scenarios such as urban communities, industrial parks, livestock and poultry farms, medical institutions, scenic spots]. The treated effluent can meet [specific standards such as GB18918-2002 Discharge Standard of Pollutants for Municipal Wastewater Treatment Plants (Grade 1A) / local customized discharge standards], realizing harmless discharge or resource recycling of sewage
Core Advantages
- Fine Microbubble Generation
Microbubble size is typically 10–30 μm, helping improve attachment to flocs and oil droplets. - High Surface Loading
Surface load can reach 10–30 m³/(m²·h), helping save installation space. - High Gas-Water Mixing Efficiency
Gas-water mixing efficiency can be higher than 95%, supporting stable flotation performance. - Integrated System Configuration

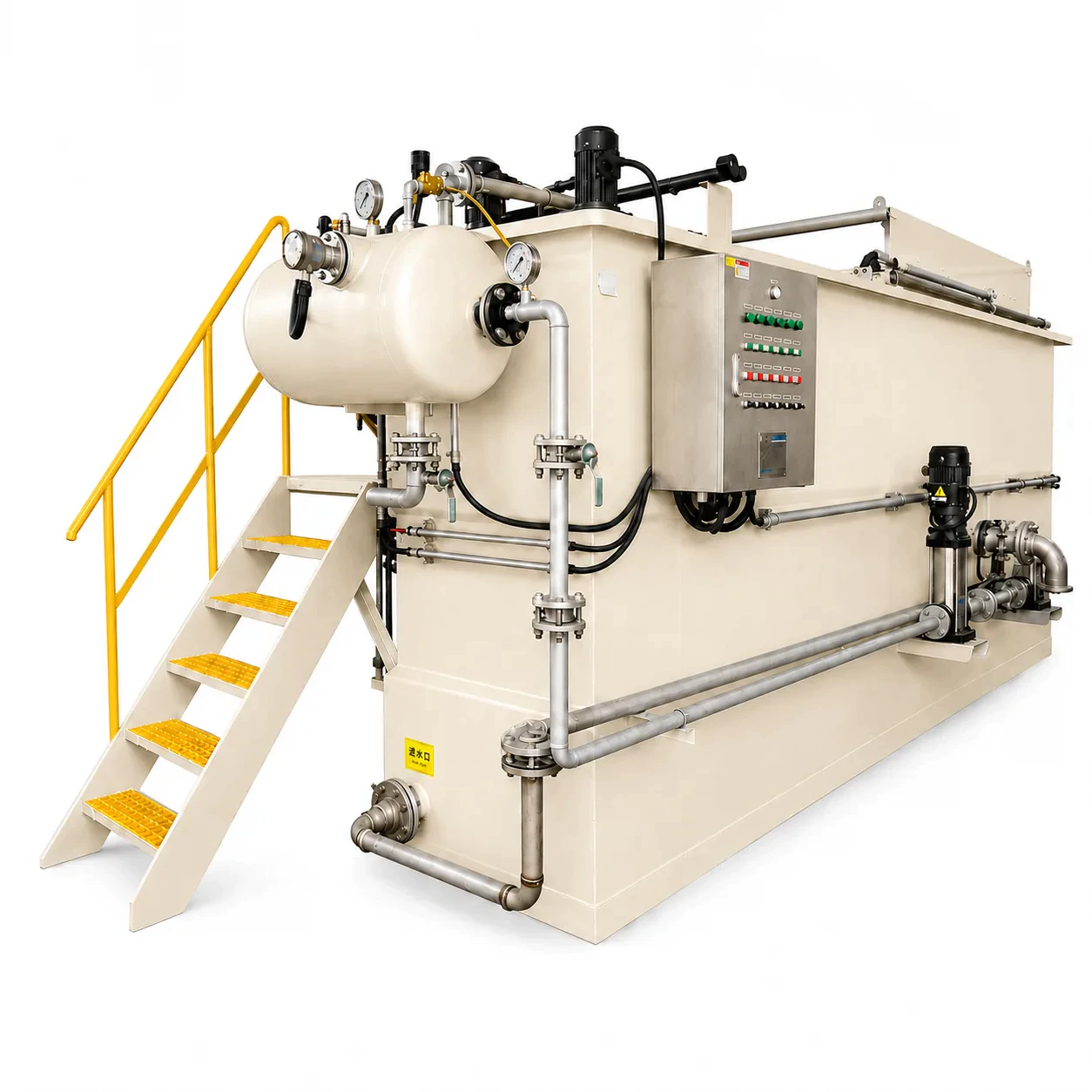

The unit can include an air dissolving system, main flotation tank, chemical reaction tank, microbubble releaser, skimmer and electric control cabinet. - Automatic Scum Removal
The skimmer system removes floating sludge from the surface and transfers it to the scum discharge area. - Wide Pollutant Removal Scope
Suitable for removing suspended solids, oil, grease, flocs, turbidity, COD, BOD and total phosphorus.
- Efficient Purification & Compliance Assurance
Adopting [core technology name], it can rapidly decompose complex pollutants in sewage with a pollutant removal rate of up to [specific percentage, e.g., over 95%], ensuring stable compliance of effluent quality and strong adaptability to fluctuations in water quality. - Energy Conservation, Environmental Protection & Cost Control
Designed in line with energy-saving concepts, the equipment/agent [e.g., uses low-power motors/zero chemical addition with biological strains/circulating treatment process], significantly reducing energy consumption and chemical costs during operation. It also minimizes sludge production and lowers solid waste disposal expenses. - Flexible Adaptation & Easy Installation
To meet diverse scenario requirements, it offers [modular assembly/mobile deployment/customized configuration] solutions, occupying only [specific ratio, e.g., 60%] of the area of traditional processes. Whether for new projects or renovation of old facilities, installation and commissioning can be completed quickly. - Intelligent Management & Hassle-Free Operation
Equipped with [intelligent sensors/Internet of Things (IoT) monitoring platform/automatic dosing system], it can real-time monitor water quality indicators and equipment operating status, supporting remote control and fault early warning. No on-site personnel are required, reducing the threshold for manual operation and maintenance. - Green Sustainability & Resource Recycling
The treated effluent can be used for [farmland irrigation/landscaping irrigation/industrial cooling water/municipal miscellaneous use] as needed, realizing water resource recycling. Sludge can be converted into [organic fertilizer raw materials/biomass fuel] after further treatment, aligning with green development concepts.
Application Scope
- Petrochemical wastewater
- Slaughterhouse wastewater
- Food processing wastewater
- Textile wastewater
- Printing and dyeing wastewater
- Tanning wastewater
- Paper-making wastewater
- Pharmaceutical wastewater
- Landfill leachate
- Surface treatment wastewater
- Tailwater phosphorus removal
- Reclaimed water reuse
- River, lake and landscape water treatment
- New energy wastewater and precious metal recovery pretreatment
- Industrial wastewater pretreatment before biological treatment or advanced treatment
- Municipal Field: Urban domestic sewage treatment plants, centralized sewage treatment in urban villages, black and odorous water body remediation of rivers
- Industrial Field: Treatment of production wastewater from food processing, textile printing and dyeing, chemical industry, electroplating, papermaking and other industries
- Agricultural Field: Livestock and poultry breeding wastewater, farmland irrigation tailwater, aquaculture water circulation treatment
- People's Livelihood Field: Medical institution sewage, sewage from schools/hotels/scenic spots, decentralized rural sewage treatment
Service Guarantee
SFC provides technical support for water quality evaluation, process selection, equipment model selection, layout design, installation guidance and commissioning.
Before selection, wastewater flow rate, SS, COD, BOD, oil and grease, total phosphorus, pH, temperature and target effluent requirements can be evaluated. Coagulation and flocculation tests can also be used to determine chemical selection, dosage and expected separation performance.
The DAF model, recycle ratio, tank size, nozzle size, skimmer type, dissolved air system, dosing system and control configuration should be selected according to wastewater flow and pollutant load.
- Customized Solutions: Provide one-on-one technical scheme design based on customers' water quality, water volume, site conditions and discharge standards.
- Full-Process Service: Cover one-stop services including scheme design → production and manufacturing → installation and commissioning → personnel training → after-sales maintenance.
- After-Sales Response: Establish a 7×24-hour after-sales service system. After a fault report, response within [specific time, e.g., 2 hours] and on-site handling within 24 hours.
- Long-Term Cooperation: Offer value-added services such as chemical supply, equipment inspection and technical upgrading to ensure long-term stable operation of the product.
Parameter
| Model Spec. |
RDAF-002 | RDAF-005 | RDAF-010 | RDAF-020 | RDAF-030 | RDAF-050 | RDAF-080 | RDAF-100 | RDAF-150 | RDAF-200 | Remark | |
| Capacity (m³/h) | 2 | 5 | 10 | 20 | 30 | 50 | 80 | 100 | 150 | 200 | Final equipment dimensions, material, pump power, compressor power, dosing system and control configuration should be confirmed according to wastewater characteristics and project requirements. | |
| Pipe Connection | Inlet | DN50 | DN80 | DN100 | DN150 | DN150 | DN200 | DN250 | DN300 | DN350 | DN400 | |
| Outlet | DN50 | DN80 | DN100 | DN150 | DN150 | DN150 | DN250 | DN250 | DN350 | DN400 | ||
| Sludge Discharge | DN100 | DN100 | DN100 | DN150 | DN150 | DN150 | DN150 | DN150 | DN250 | DN250 | ||
| Vent | DN50 | DN50 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | DN100 | DN100 | ||
| External Dimensions (mm) | L | 3000 | 4700 | 5700 | 6200 | 7200 | 8200 | 11200 | 11700 | 14200 | 15200 | |
| W | 700 | 1000 | 1200 | 1800 | 2000 | 2700 | 3200 | 3600 | 3600 | 4000 | ||
| H | 1600 | 1960 | 1960 | 1960 | 2050 | 2050 | 2050 | 2050 | 2050 | 2050 | ||
| Weight (kg) | 1300 | 1600 | 2000 | 3000 | 3800 | 5500 | 7500 | 9000 | 11000 | 13000 | ||
| Operating Weight (kg) | 4000 | 7000 | 12000 | 22000 | 32000 | 55000 | 100000 | 110000 | 130000 | 150000 | ||
Item | Technical Specifications |
|---|---|
| Treatment Capacity | [5-500 m³/d (equipment); 1kg agent treats XX m³ sewage (agent)] |
| Inlet Water Quality | COD≤[ ]mg/L, Ammonia Nitrogen≤[ ]mg/L, SS≤[ ]mg/L |
| Effluent Standard | [XXX Standard] Grade XXX |
| Operating Power/Dosage | [XX kW; XX g/m³ sewage] |
| Floor Area/Storage | [XX ㎡; cool & dry place] |
Advantages
Integrated R&D Strength
Backed by cooperation with leading domestic universities, we continuously develop efficient and reliable sludge treatment equipment, ensuring advanced technology and stable long-term performance.
Complete Product Range
We supply sludge dewatering machines, thickeners, dryers, dosing systems and full disposal solutions, meeting both single-equipment demands and integrated system requirements.
One-Stop Solutions
From technical consultation and solution design to on-site installation and commissioning, we provide end-to-end services tailored to each customer’s operating conditions.
Global Project Experience
Our equipment is widely applied in municipal and industrial wastewater treatment and has been successfully exported to Southeast Asia, Russia and South America.
Successful Cases
SST Screw Sludge Thickener Project in Shaanxi
TR Reciprocating Circulation Sludge Drying Project in Jiangsu
FTE3 Belt Sludge Dewatering Project in Anhui
SD High-pressure Belt Sludge Deep Dewatering Project in Liaoning
FTB Rotary Drum Sludge Dewatering Project in Suzhou
FBT Belt Sludge Thickener Project in Hubei
